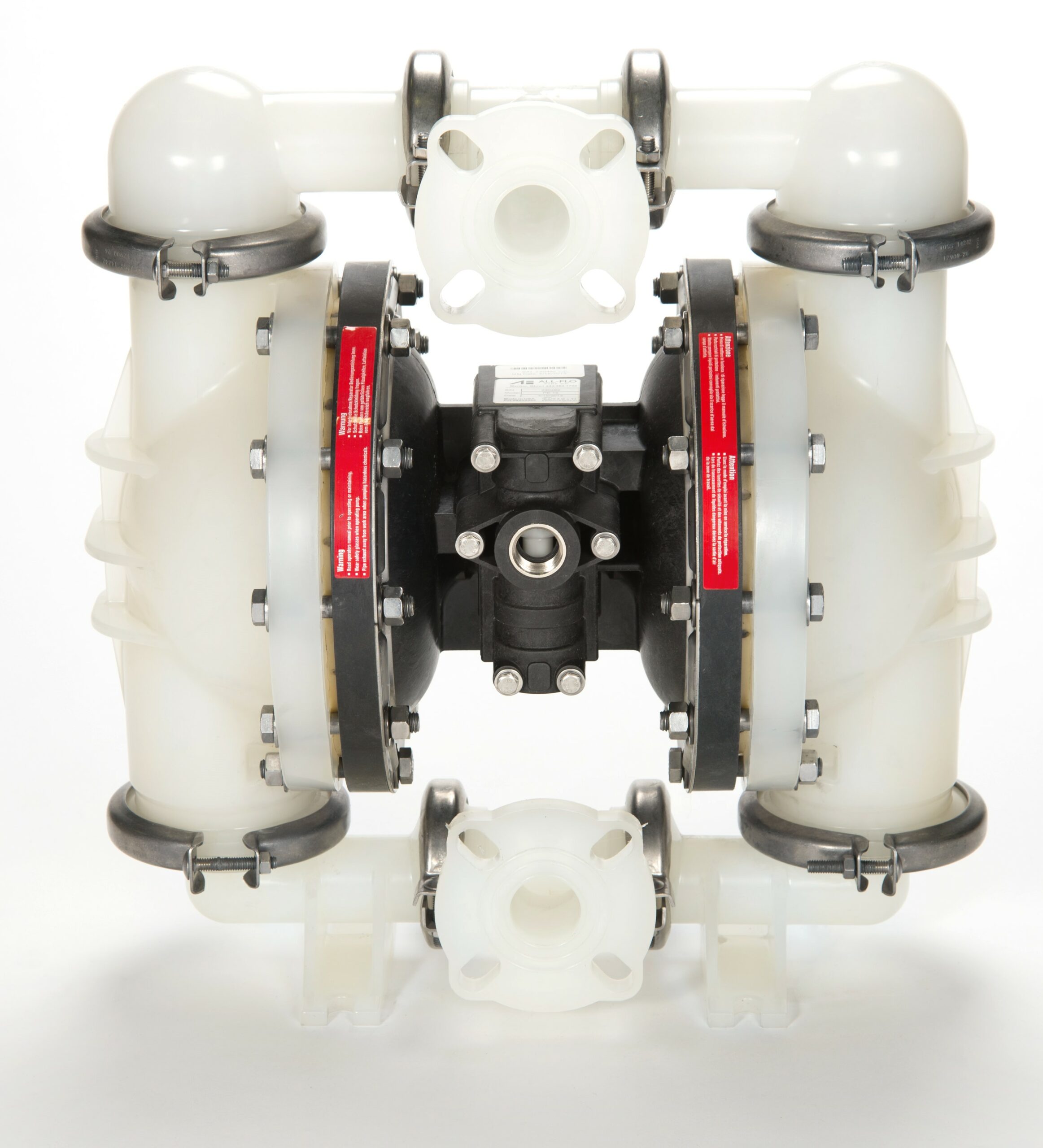

1-1/2” (38mm) Polypropylene/Santoprene
REPLACES OLD MODEL NUMBER PE-15
Engineered for maximum fluid and chemical compatibility. Heavy duty, stall free, non-metallic air section ensures stall free & freeze free operation. Rugged valve system allows operation under a variety of conditions, ranging from clean fluids to slurries, to solids applications. Bolted design provides ease of maintenance and leak free operation. Available in a variety of materials and options.
*Suitable for clean fluids, slurries or up to 1/4” solids
*Heavy duty air valve
*Available in metallic and non-metallic wetted components
Physical Dimensions See Drawings
Air Inlet 3/4
Liquid Inlet 1½ (38mm)
Liquid Outlet 1½ (38mm)
Weight 59 (26.8) lbs (kg)
Maximum Flow 130 gpm (492 lpm)
Maximum Air Pressure 120 psi (8.2 bar)
Maximum Solids 1/4 (6.4 mm)
Max Suction Lift Dry 13 ft (3.9 m)
Max Suction Lift Wet 26 ft (7.9m)
Max Suction Lift Dry with PTFE 10 ft (3 m)
Max Temperature 150 (66) °F (°C)
Noise Level (with muffler) 78 dBA
